Installation on Archer2

Here, I go through the procedure for installing CESM version 2.1.3 on ARCHER2. These are mainly based on the instructions on the ARCHER2 website but correct them, so it actually works.

Step 1 - ARCHER2 Account

First, you need to setup an ARCHER2 account and then connect using ssh.

Step 2 - Downloading CESM 2.1.3 And Setting Up The Directory Structure

This step is the same as on the ARCHER2 website, i.e. you need to run:

module load cray-python
source /work/n02/shared/CESM2/setup_cesm213.sh

This script will create a directory at $CESM_ROOT, defaulting to /work/$GROUP/$GROUP/$USER/cesm/CESM2.1.3, so for me with $GROUP=n02, and $USER=jamd, $CESM_ROOT = /work/n02/n02/jamd/cesm/CESM2.1.3/.

Note $CESM_LOC = $CESM_ROOT/my_cesm_sandbox in what follows.

Step 3 - Changes to Externals Configuration

A couple of sections in the file $CESM_ROOT/my_cesm_sandbox/Externals.cfg need modifying. First, change the CIME section from:

Editing files on ARCHER2

You can open or edit a file using the nano.

  • nano index.html opens the index.html file, which can then be edited.
  • Ctrl + O to save the file, and confirm with Enter
  • Ctrl + X to close nano

Alternatively, globus can be used to transfer the file to your local laptop, where you can make the necessary edits, before sending it back to overwrite the file on ARCHER2.

[cime]
tag = cime5.6.32
protocol = git
repo_url = https://github.com/ESMCI/cime
local_path = cime
required = True

to (note when I did this, I did not include the externals = Externals_cime.cfg addition):

[cime]
branch = maint-5.6
protocol = git
repo_url = https://github.com/ESMCI/cime
local_path = cime
externals = Externals_cime.cfg
required = True

The CAM section in the same file also needs changing. This is the step that was missing from the ARCHER2 website, but I think it is there now. This needs changing from:

[cam]
tag = cam_cesm2_1_rel_41
protocol = git
repo_url = https://github.com/ESCOMP/CAM
local_path = components/cam
externals = Externals_CAM.cfg
required = True

to:

[cam]
tag = cam_cesm2_1_rel
protocol = git
repo_url = https://github.com/ESCOMP/CAM
local_path = components/cam
externals = Externals_CAM.cfg
required = True

Step 4 - Downloading Components

Now you can download the external components by running the following commands:

cd $CESM_ROOT
./manage_externals/checkout_externals
Confirming successful download

To confirm a successful download of all components, you can run checkout_externals with the status flag to show the status of the externals:

./manage_externals/checkout_externals -S

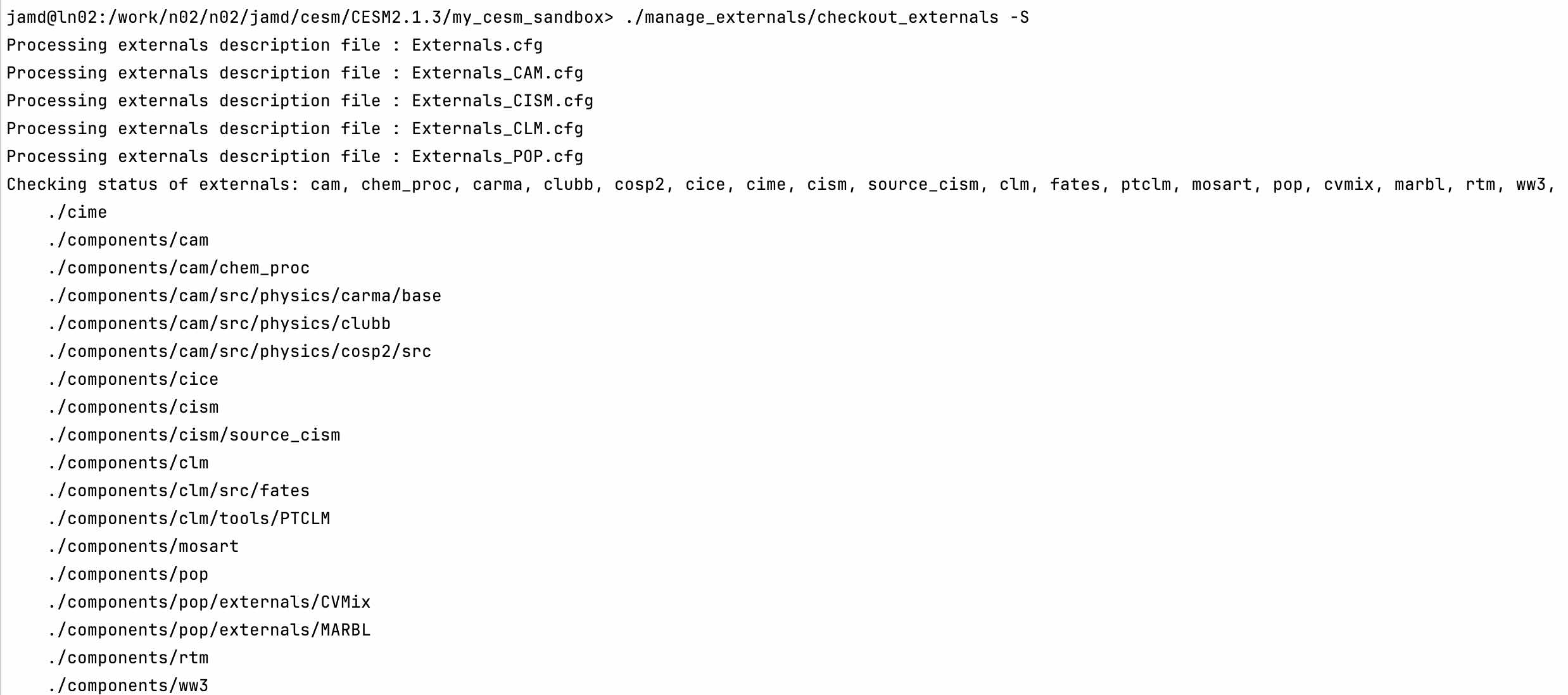

This should show a clean status for all externals, with no characters in the first two columns of output, as in this example:


This comes from the CESM website (but the screenshot is from my installation).

Step 5 - Building cprnc

cprnc is a generic tool for analyzing a netcdf file or comparing two netcdf files. It is used in various places by CESM and the source is included with cime. My procedure for building it differs slightly from that on the ARCHER2 website.

First, load CESM2/2.1.3 and navigate to $CIMEROOT/tools/cprnc:

module load CESM2/2.1.3
cd $CIMEROOT/tools/

where $CIMEROOT = $CESM_ROOT/my_cesm_sandbox/cime. For me, I am in the directory /work/n02/n02/jamd/cesm/CESM2.1.3/my_cesm_sandbox/cime/tools at this stage.

If the directory $CIMEROOT/tools/cprnc does not exist (it did not for me) then create and enter it:

cd $CIMEROOT/tools/
mkdir cprnc
cd ./cprnc

From the $CIMEROOT/tools/cprnc directory, run the following three commands (one after the other):

../configure --macros-format=Makefile--mpilib=mpi-serial
sed -i '/}}/d' .env_mach_specific.sh
source ./.env_mach_specific.sh && make

I received the following message after the last of these commands, which is expected:

The following dependent module(s) are not currently loaded: cray-hdf5-parallel (required by: CESM2/2.1.3), cray-netcdf-hdf5parallel (required by: CESM2/2.1.3), cray-parallel-netodf (required by: CESM2/2.1.3)

Note that this step is not essential, so you can proceed to the next step if you encountered some issues here.

Step 6 - Changing Input Data Configuration

When I first installed CESM on ARCHER2, I kept getting errors when trying to download input data. These errors arose due to a problem with globus.

I managed to fix it by changing the order so the wget protocol is used instead. This is done by modifying the $CIMEROOT/config/cesm/config_inputdata.xml file as indicated below:

<?xml version="1.0"?>

<inputdata>
  <!-- server precidence is order in this file.  Highest preference at top -->
  <!-- If the client doesn't have the protocol it will be skipped -->
  <!-- chksum verification of inputfiles is possible.  If a file with name -->
  <!-- inputdata_chksum.dat is found on the server in the directory above inputdata -->
  <!-- it will be searched for filename and chksum of each downloaded file.  -->
  <!-- see the file ftp://ftp.cgd.ucar.edu/cesm/inputdata_chksum.dat for proper format. -->
  <server>
    <comment>grid ftp requires the globus-url-copy tool on the client side </comment>
    <protocol>gftp</protocol>
    <address>ftp://gridanon.cgd.ucar.edu:2811/cesm/inputdata/</address>
    <checksum>../inputdata_checksum.dat</checksum>
  </server>

  <server>
    <protocol>wget</protocol>
    <address>ftp://ftp.cgd.ucar.edu/cesm/inputdata/</address>
    <user>anonymous</user>
    <password>user@example.edu</password>
    <checksum>../inputdata_checksum.dat</checksum>
  </server>

  <server>
    <comment> ftp requires the python package ftplib </comment>
    <protocol>ftp</protocol>
    <address>ftp.cgd.ucar.edu/cesm/inputdata</address>
    <user>anonymous</user>
    <password>user@example.edu</password>
    <checksum>../inputdata_checksum.dat</checksum>
  </server>

  <server>
    <protocol>svn</protocol>
    <address>https://svn-ccsm-inputdata.cgd.ucar.edu/trunk/inputdata</address>
  </server>

</inputdata>

<?xml version="1.0"?>

<inputdata>
  <!-- server precidence is order in this file.  Highest preference at top -->
  <!-- If the client doesn't have the protocol it will be skipped -->
  <!-- chksum verification of inputfiles is possible.  If a file with name -->
  <!-- inputdata_chksum.dat is found on the server in the directory above inputdata -->
  <!-- it will be searched for filename and chksum of each downloaded file.  -->
  <!-- see the file ftp://ftp.cgd.ucar.edu/cesm/inputdata_chksum.dat for proper format. -->
  <server>
    <protocol>wget</protocol>
    <address>ftp://ftp.cgd.ucar.edu/cesm/inputdata/</address>
    <user>anonymous</user>
    <password>user@example.edu</password>
    <checksum>../inputdata_checksum.dat</checksum>
  </server>

  <server>
    <comment> ftp requires the python package ftplib </comment>
    <protocol>ftp</protocol>
    <address>ftp.cgd.ucar.edu/cesm/inputdata</address>
    <user>anonymous</user>
    <password>user@example.edu</password>
    <checksum>../inputdata_checksum.dat</checksum>
  </server>

  <server>
    <protocol>svn</protocol>
    <address>https://svn-ccsm-inputdata.cgd.ucar.edu/trunk/inputdata</address>
  </server>

  <server>
    <comment>grid ftp requires the globus-url-copy tool on the client side </comment>
    <protocol>gftp</protocol>
    <address>ftp://gridanon.cgd.ucar.edu:2811/cesm/inputdata/</address>
    <checksum>../inputdata_checksum.dat</checksum>
  </server>

</inputdata>

Once this step has been completed, you are ready to run a simple test case.
