Pycharm

My preferred IDE for python is Pycharm. The following gives instructions on how files can be synced between your local computer and a high performance computer e.g. kennedy using Pycharm.

Then, you basically code as you normally would on your local computer but everything happens on the high performance computer.

Syncing a Pycharm Project

Pycharm also provides a useful video and instructions.

First, login to kennedy and create a CONDA environment. I will be using an environment called test_env.
Next, create a Pycharm project. I wouldn't worry too much about the python interpreter as we will later change this to use the CONDA environment we just set up on the high performance computer. I would probably just use set up a CONDA environment or use one that is already been set up.

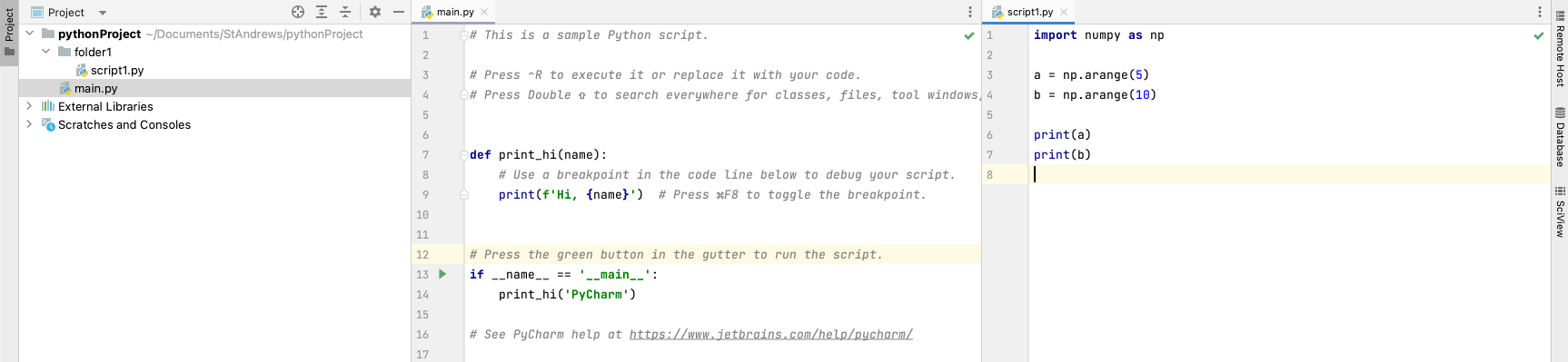

Create a couple of files in the project so we can sync it to the high performance computer e.g.
Next choose the remote CONDA environment as the python interpreter by following the 5 steps indicated below.

12345

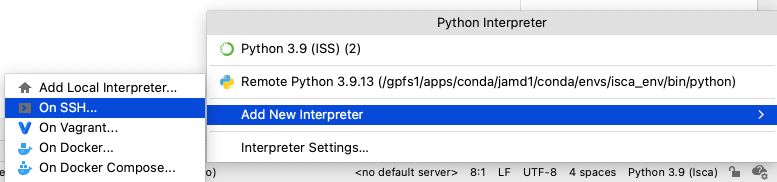

1.Click on your current python interpreter in the bottom right (Python 3.9 (Isca) for me). Then add a new SSH interpreter.
2.Enter your kennedy login details.

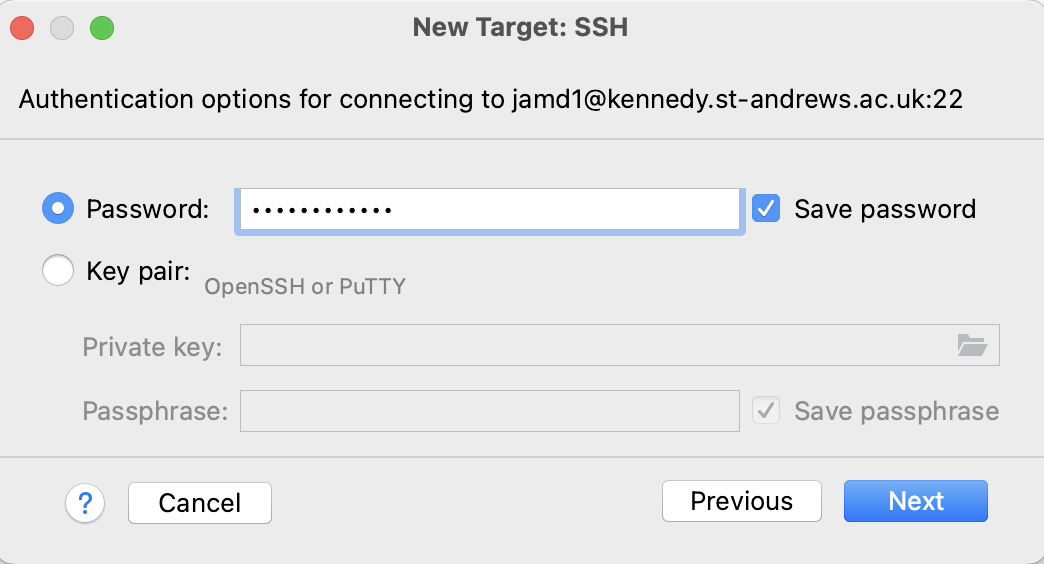

3.Enter the corresponding password.

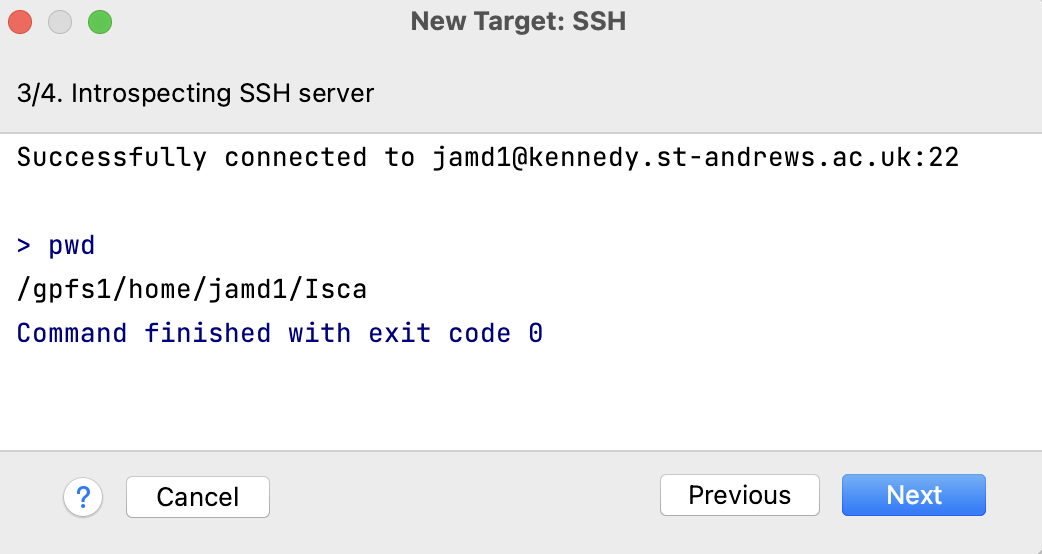

4.You should get a confirmation message indicating that you connected successfully.
5.In the next screen, select an existing environment.
In the Interpreter section, select the python file from the CONDA environment you want to use.
In the Sync folders section, enter the address on kennedy where you would like the project to be saved (The project name must be the same as it is on your local computer though i.e. pythonProject for me).

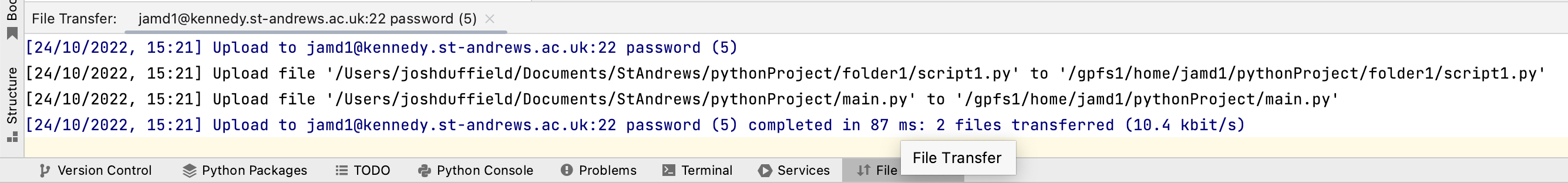

After confirming this, you should get a File Transfer tab in the bottom toolbar, indicating the files in the project have been transferred. When changes are made to these files locally, they will also be changed remotely.

Remote Files don't get deleted when deleted locally

By default, when you delete a file locally, the remote equivalent does not get deleted.

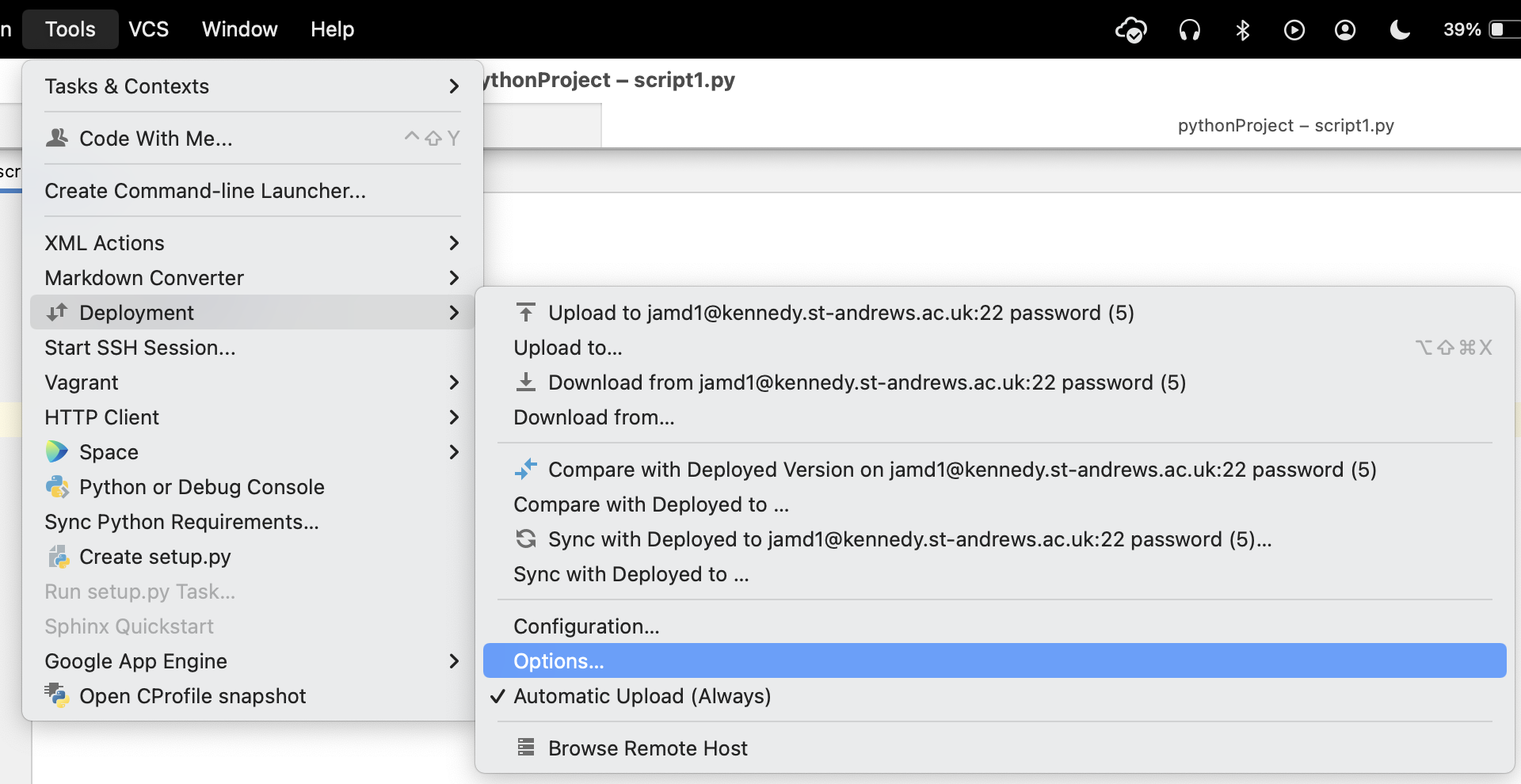

To change this, go to Tools → Deployment → Options.

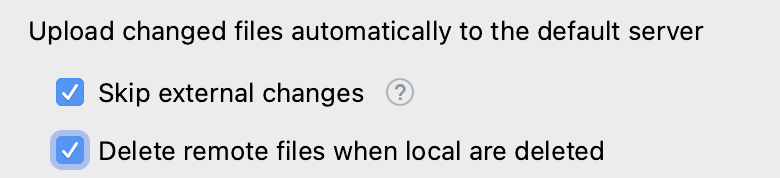

Then tick the Delete remote files when local are deleted box:

Tools → Deployment → OptionsDelete remote files when local are deleted

Python Console and Terminal

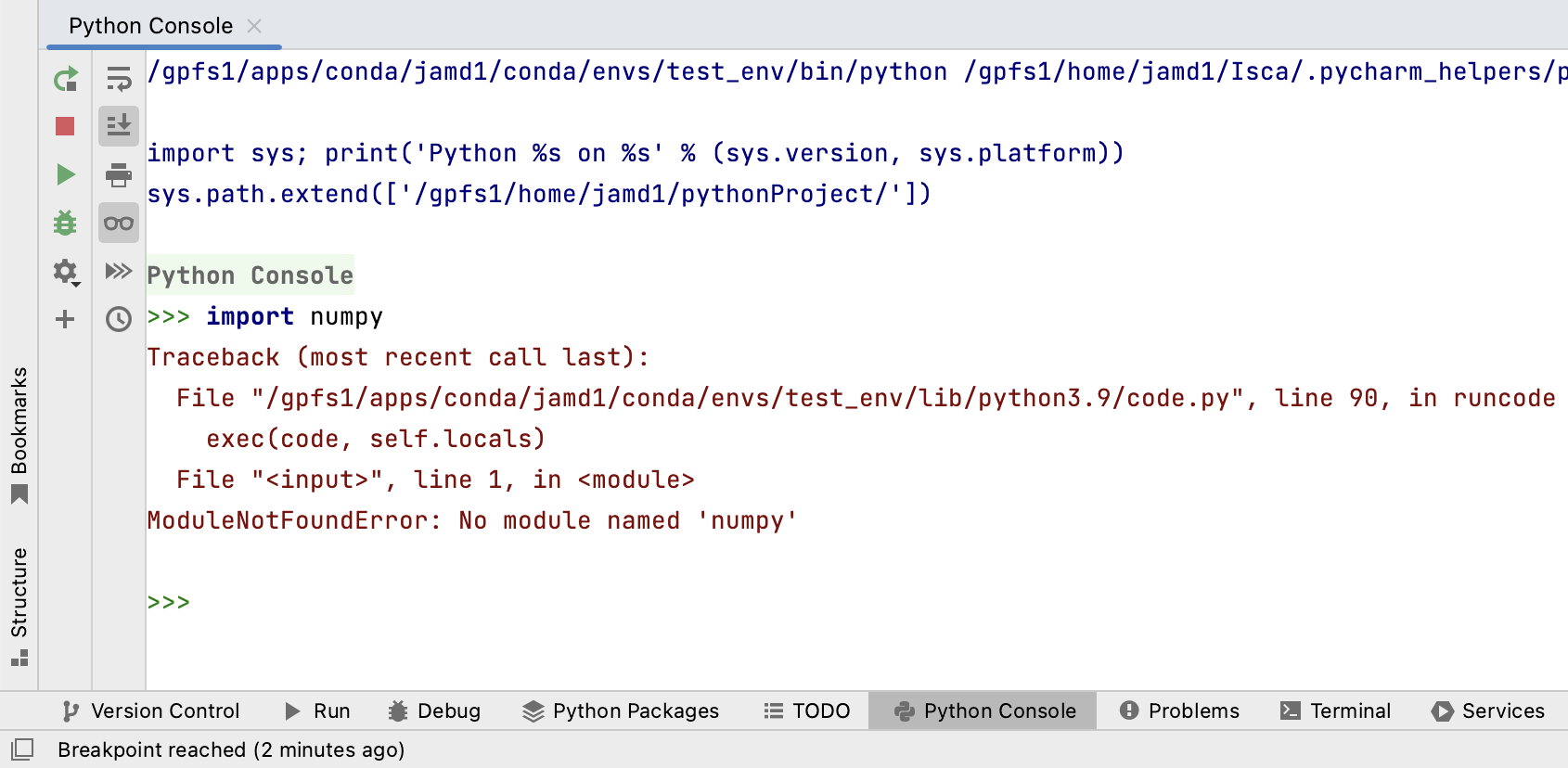

The Python Console in the bottom toolbar should now be using the remote CONDA version of python as indicated by the first line in blue and the current path is the remote project as indicated by the last blue line, starting sys.path.extend:

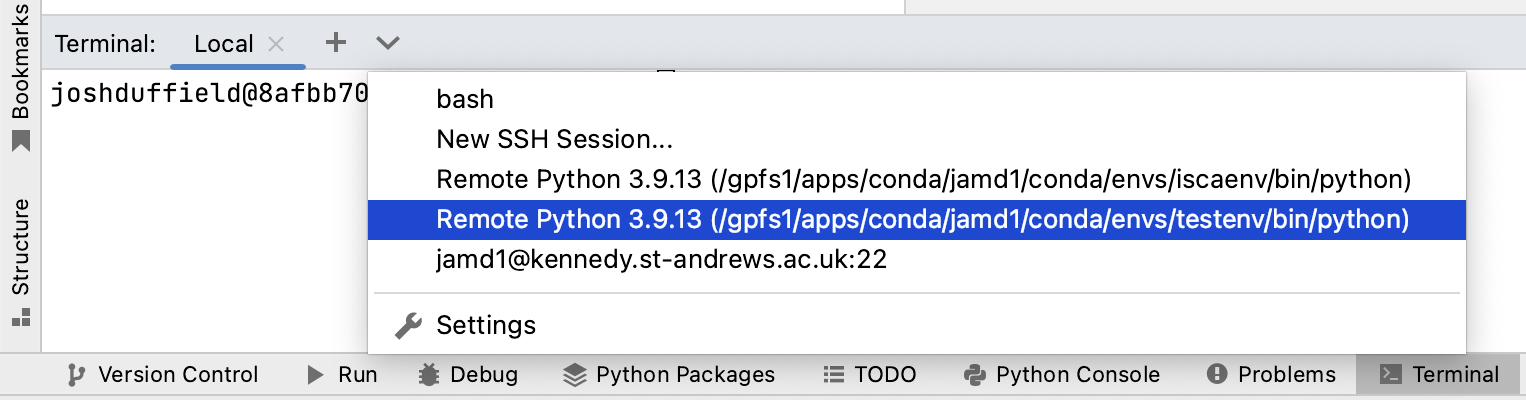

However, this CONDA version of python may not have anything installed yet, hence I get the error when trying to import numpy. To install a package on the remote CONDA, go to the Terminal tab in the bottom toolbar and start a SSH terminal session by clicking the downward arrow and selecting the correct Remote Python option:

This will log you into kennedy without asking for login details seen as you have already provided them. Then, activate the CONDA environment and install the package (pip install numpy). If you then restart the Python Console, you should now be able to import numpy.

Debugging

I think that one of the main advantages of using Pycharm is the debugging feature, so you can pause a function in real time to see the variables or see why it is hitting an error. This feature can also be used in this remote setup.

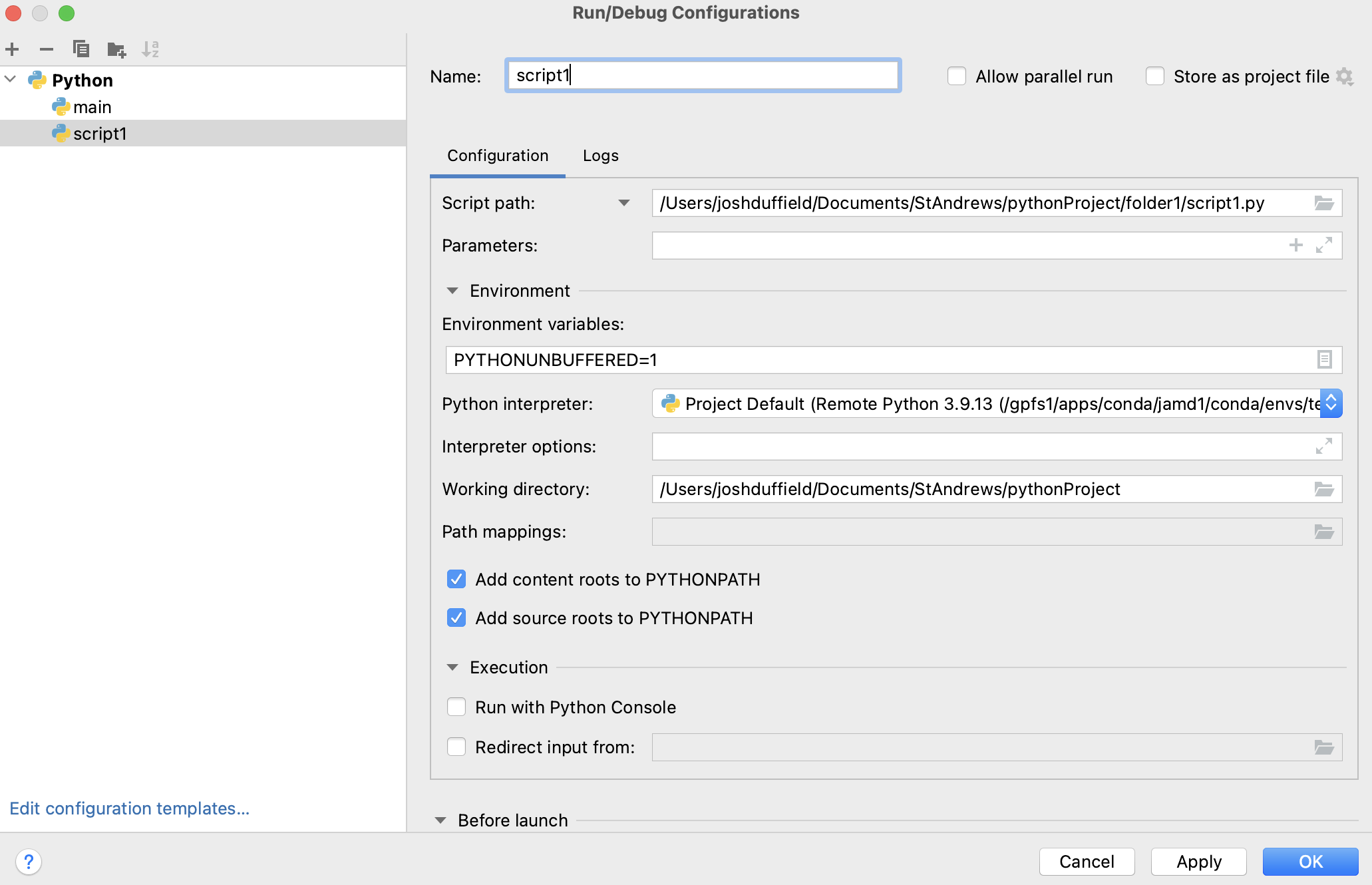

First, create a run configuration for the script that you want to run. I will be using script1.py:

Then, to run in debug mode, click the little beetle in the top right. If you then add a breakpoint somewhere, the code should stop at that point, so you can see the value of all the variables:

Jupyter Notebook

The following comes from this website.

On the remote computer, install jupyterlab in your CONDA environment:
conda install -c conda-forge jupyterlab.
Next, start a screen session, so you can drop in and out of it and leave it running for ages:
screen -S jupyter_test
Then, run the following to enable a jupyter connection:
```
conda activate test_env
chmod u+x /gpfs1/apps/conda/$USER/conda/envs/*/bin/*
jupyter lab --no-browser --port=1111
```
The second line is just to ensure you have permission to use jupyter. I get a Permission Denied error without doing this. The port in the last line can be any 4 digit number.

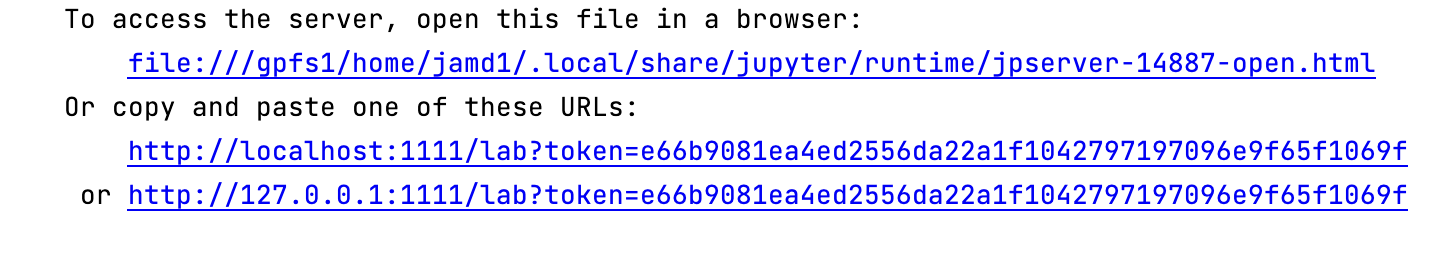

You should then get a list of links:
Next, open a local terminal window and type:
```
ssh -N -f -L localhost:1111:localhost:1111 jamd1@kennedy.st-andrews.ac.uk
```
You will have to enter your kennedy password.

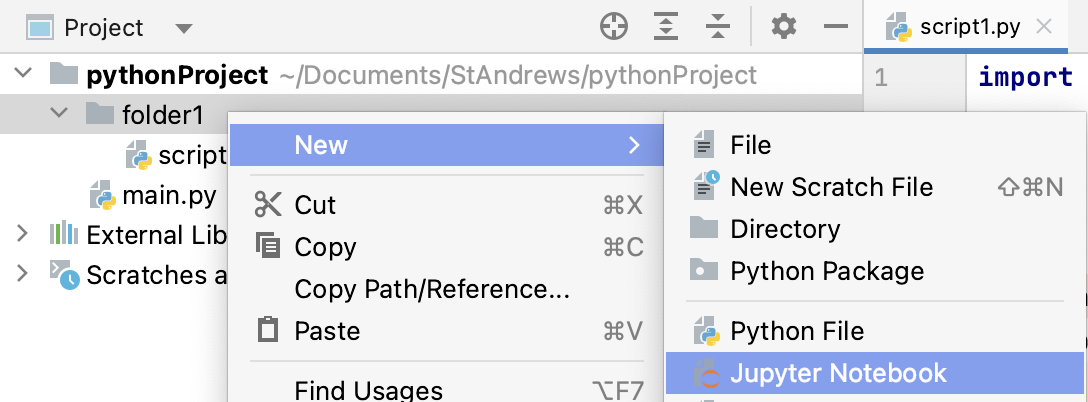

Next, create a jupyter notebook in Pycharm as indicated by the first image below:

Create NotebookConfigure NotebookExample Notebook

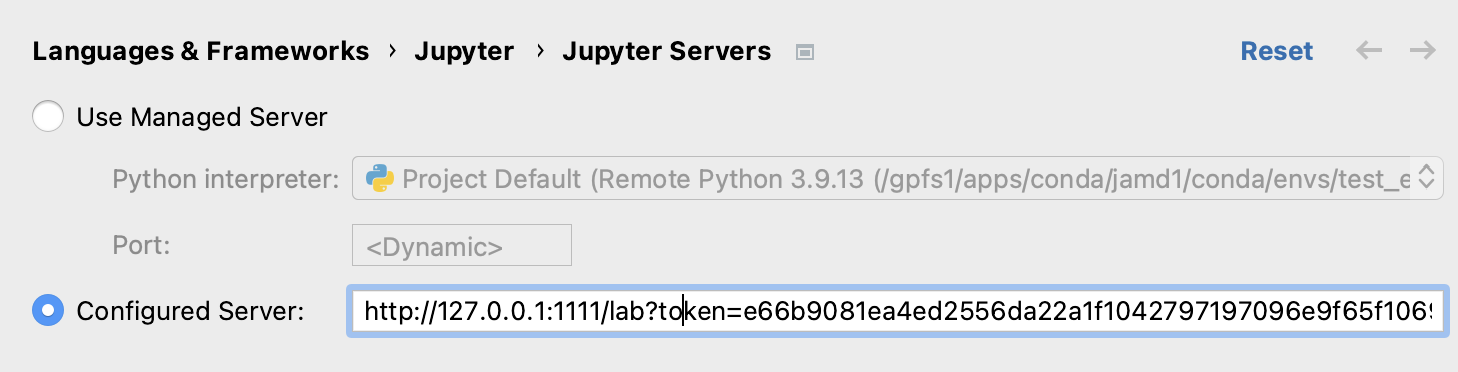

Then configure the notebook (button in top right of notebook), by specifying the Configured Server to be the last link that was printed out when creating the jupyter connection (second image.

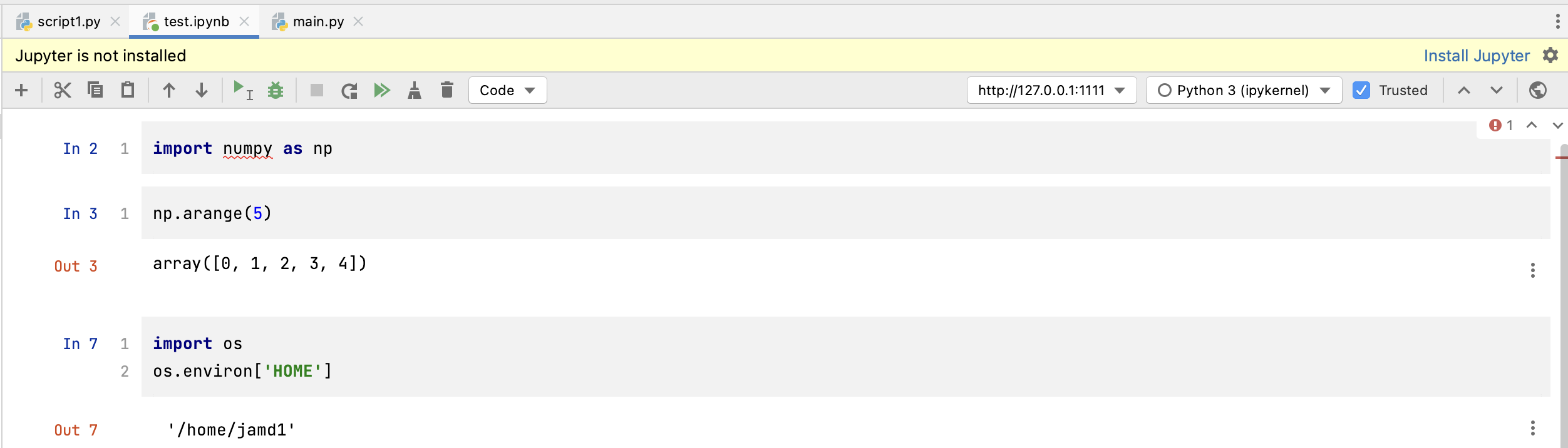

You should now be able to create a notebook, with access to the environmental variables on the remote computer as indicated by the third image.
If you prefer the normal browser interface for the jupyter notebook, you can click the globe in the rop right corner.
If you keep the screen session going, you should only have to re-run the line
ssh -N -f -L localhost:1111:localhost:1111 jamd1@kennedy.st-andrews.ac.uk
everytime you want to use the notebook again.

Error - Could not request local forwarding

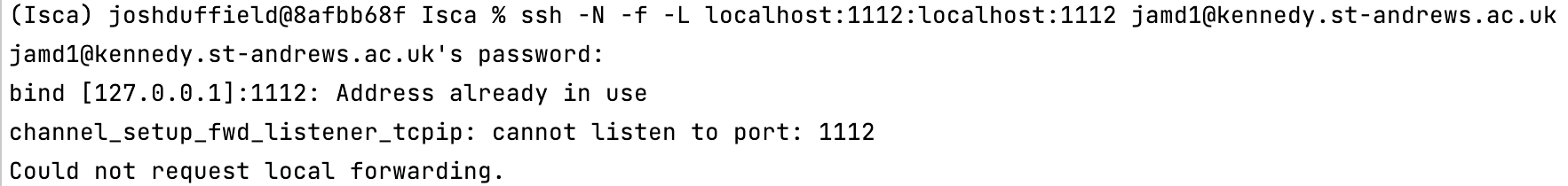

You may need to restart the screen session every now and again with a new port number. I had to do this because I recieved the following error:

If you get this error, just terminal the screen session (pkill screen kills all screen sessions and screen -S 13780 -X quit kills screen session with number 13780) and then follow the above instructions again with a new port number.

Changes to jupyter notebook files do not sync to remote computer

To upload the changes you made to the jupyter notebook file locally, you can use:
Tools → Deployment → Sync with Deployed to jamd1@kennedy...
Make sure you are using the blue arrow to sync from your local to the remote computer.
